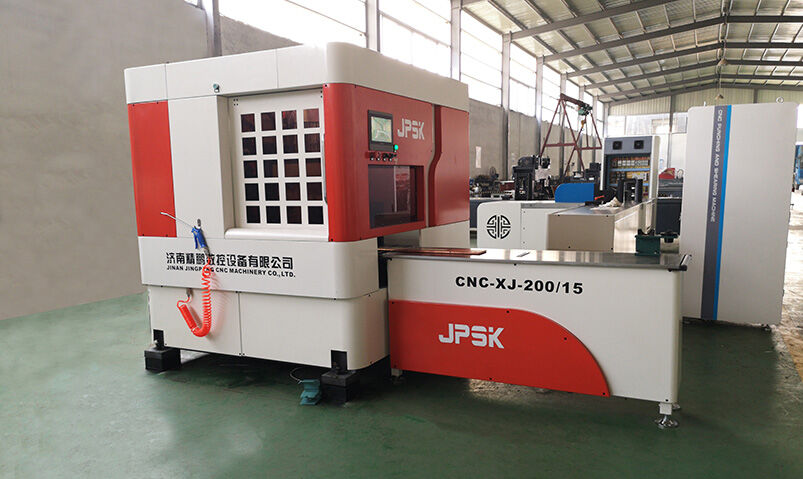

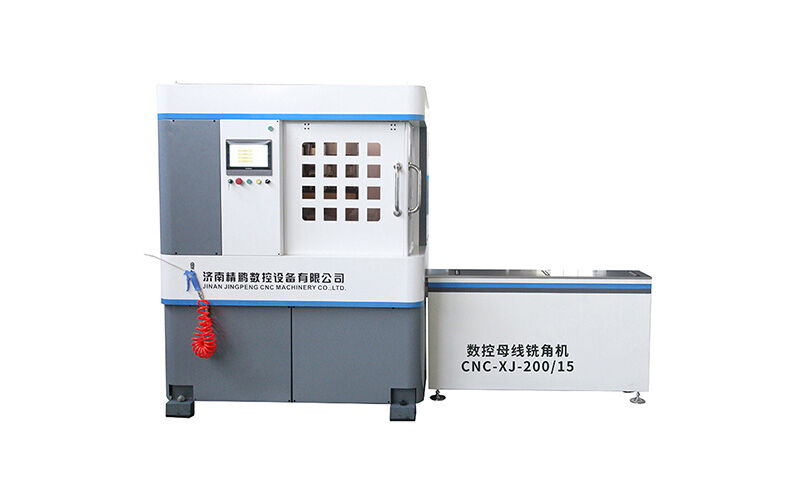

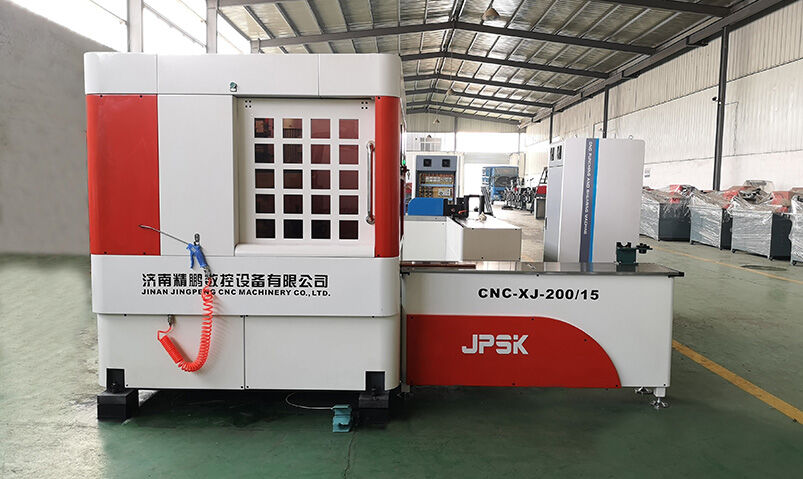

CNC busbar chamfering machine
Updated:2020-12-19


Model: CNC-XJ-200/15

Power: 9 Kw

Delivery time: 7-25days

MOQ: 1 PCS

Certification: ISO9001:2000/CE

Payment: T/T, L/C

Brand: JPSK

Place of Origin: Jinan, China


Inquiry
Contact Us

Product Description


CNC busbar chamfering machine (CNC-XJ-200/15) is a good united busbar processing machine of automatic positioning, automatic clamping and automatic chamfering by our company’s independent research and development which has high precision positioning, high convenient and high performance advantages.


 Technical Parameter


ItemModel
CNC-XJ-200/15
UnitParameter
Cutting SectionSpindle SpeedR/min4000
Variable frequency motor powerVariable frequency motor powerkW4
Holder ModelHolder Model/BT40
Feeding SectionStroke of X-axismm350
Stroke of Y-axisStroke of Y-axismm410
Servo Motor PowerServo Motor PowerkW2×1.5
Feeding SpeedFeeding Speedmm/min1200
Knife Parameter (Diameter)mm65-80
Min. process lengthmm120
Max. Process (width x thickness)mm200×16
Min. Process (width x thickness)mm20×3
Air PressureMpa0.5～0.9
Hydraulic pressureKN300
Power voltageKw9
Outside Demension (length and width)mm1800×1500
Gross weightkg2450

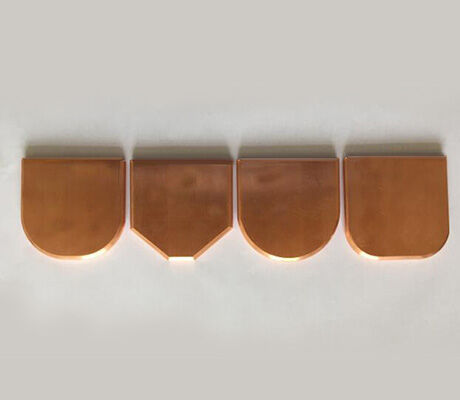

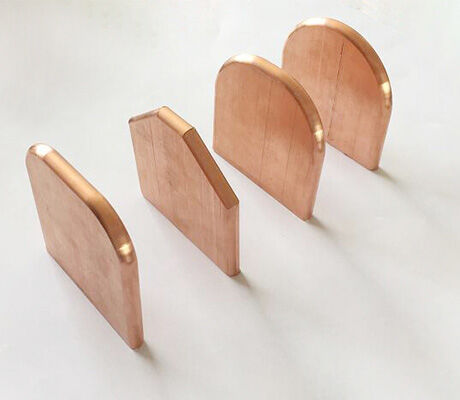

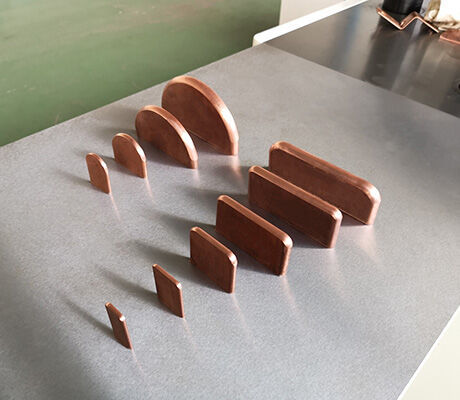

Sample Display
