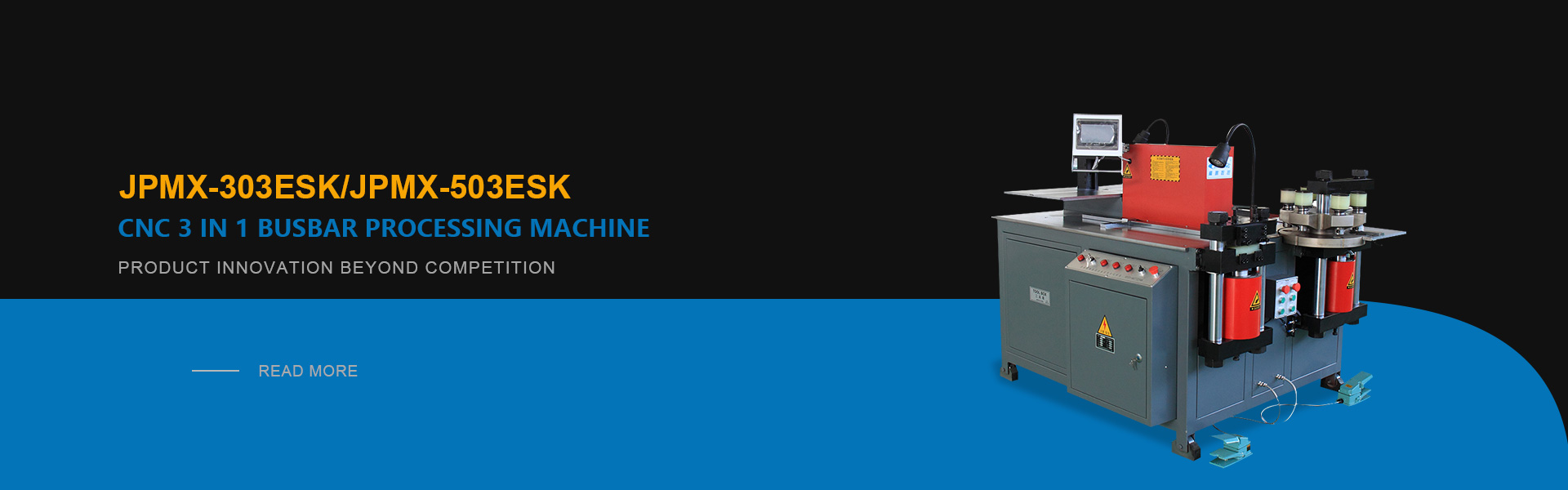

CNC 3 in 1 busbar processing machine
Updated:2021-01-04


Model: JPMX-303ESK / JPMX-503ESK / JPMX-803ESK

Power: 3×4 Kw / 3×5.5Kw

Delivery time: 7-25days

MOQ: 1 PCS

Certification: ISO9001:2000/CE

Payment: T/T, L/C

Brand: JPSK

Place of Origin: Jinan, China




Inquiry

Product Introduction

The machine has three processing units: punching, shearing and bending, adopts Siemens PLC of Germany. The main function is processing copper and aluminum busbar with different specifications. Only need to select the corresponding processing unit, it can do different kinds of processing for copper and aluminum busbar quickly and easily, such as shearing, punching(circular hole and oblong hole),flat/horizontal bending, vertical bending U-bending, embossing, flat pressing,twisting,cable connector processing etc.Main features.


The source of high quality is our serious attitude.


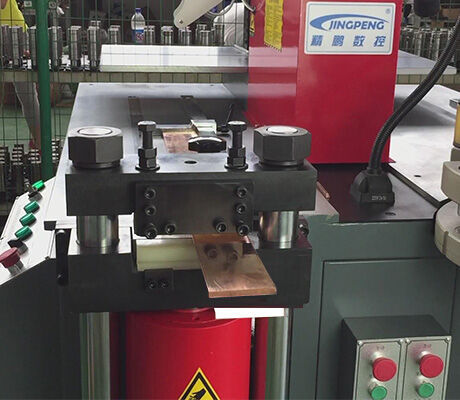

1.Double Column Shear Structure

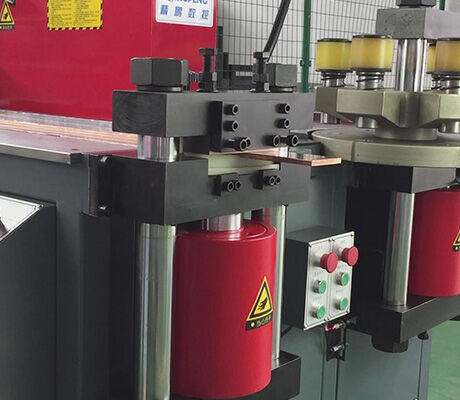

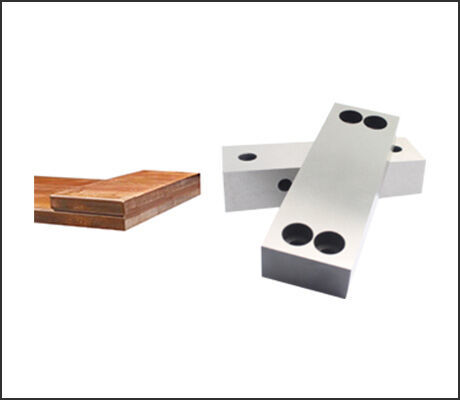

The shearing position adopts double pillar structure with flat shears, no waste, no burrs and no collapse feet.



2.Ductile iron material

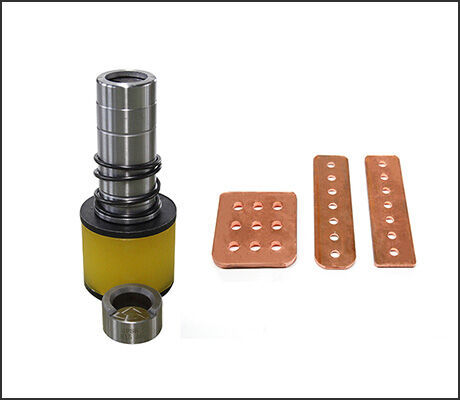

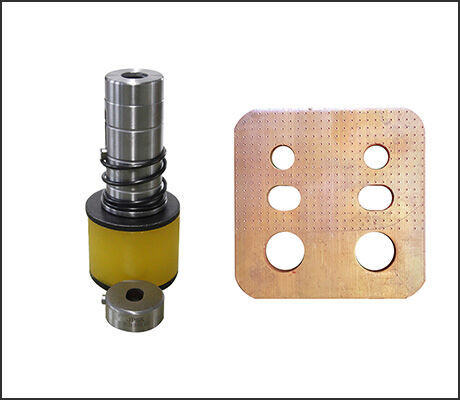

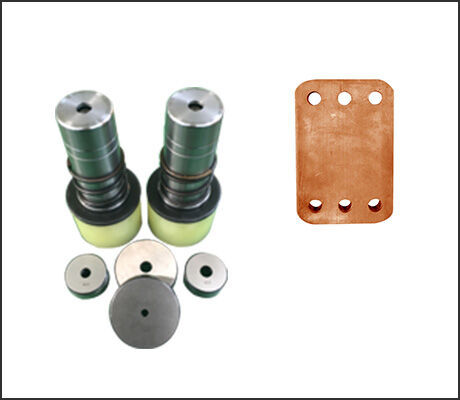

The four-hole, six-hole and eight-hole rotary tower die nesting system made of ductile iron has long service life, high accuracy and easy replacement.

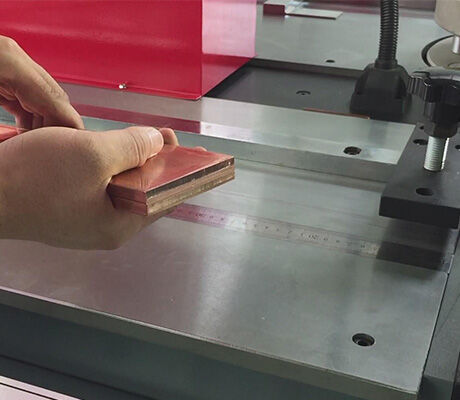

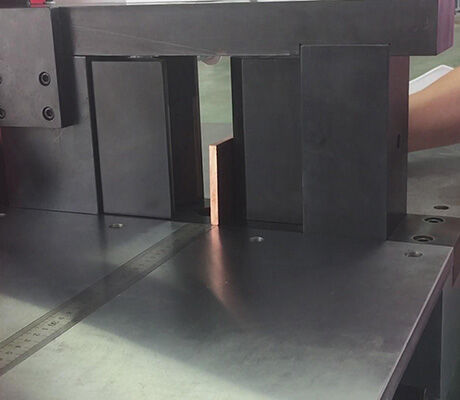

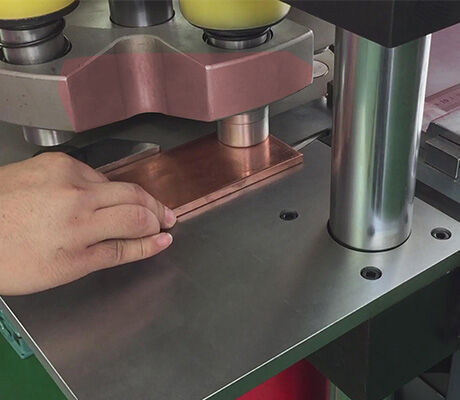

Positioning busbar

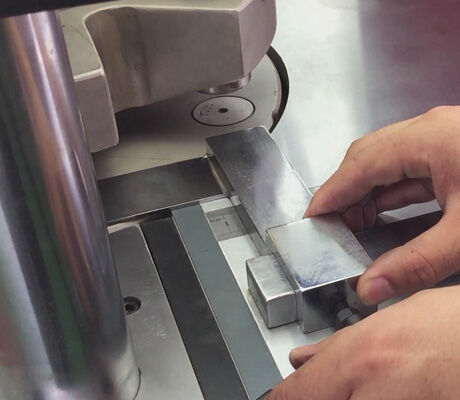

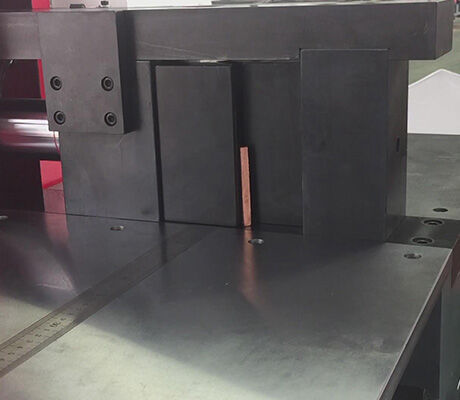

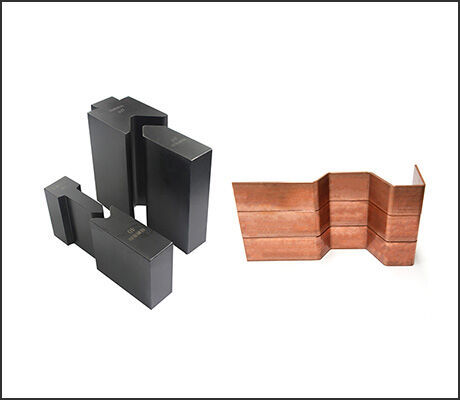

Bending work

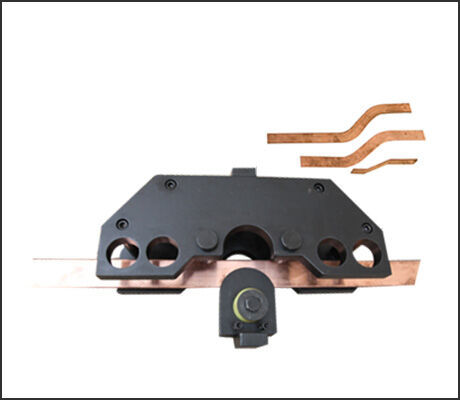

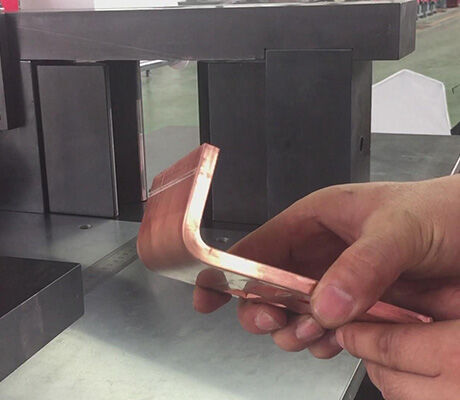

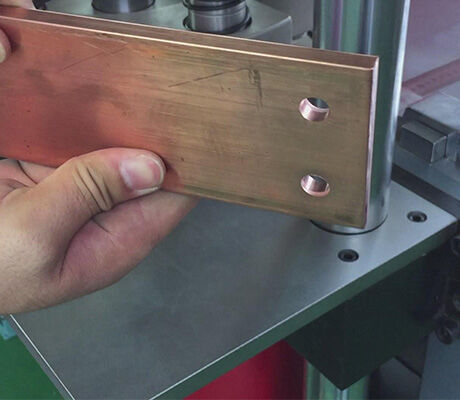

View results

Technical Parameter


ItemsModel
JPMX-303ESKJPMX-503ESKJPMX-803ESK
Nominal force (kn)300500800
Punching dia.range (mm)ф4.3~ф25ф4.3~ф30ф4.3~ф34
Max.thickness (mm)121620
Max.width (mm)160200250
Max.shearing thickness (mm)121620
Max. shearing width (mm)160200250
Max.horizontal bending width (mm)160200250
Max.Horizontal bendind thickness (mm)121620
Max.vertical bending size (mm)10×10012×12012×120
Power (kw)3×4KW3×5.5KW3×5.5KW
Bending precision (degree)±1°±1°±1°
Repeat bending precision (degree)±0.5°±0.5°±0.5°
First table size (mm)1750×12501920×13851920×1385
Second table size (mm)985×500985×500985×500
Outside dimension (mm)1780×1400×13001950×1560×13901950×1560×1450
Container size(mm)1870×1480×15202060×1660×16502060×1660×1650
Total weight(kg)1400KG1700KG2100KG
