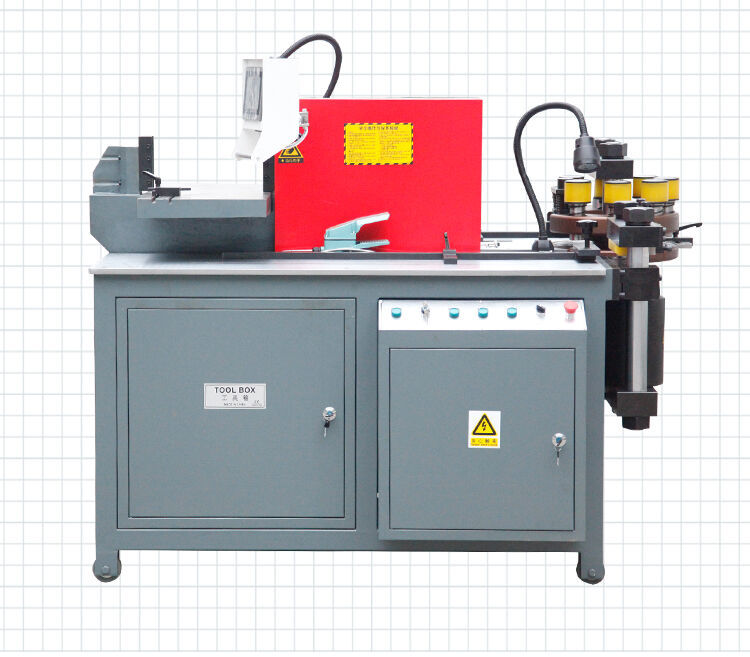

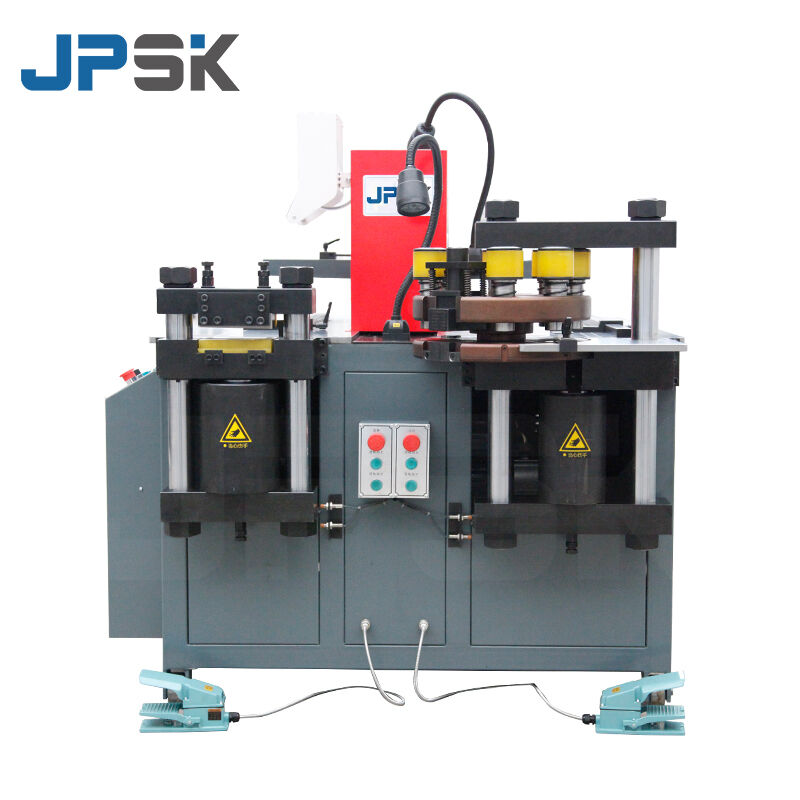

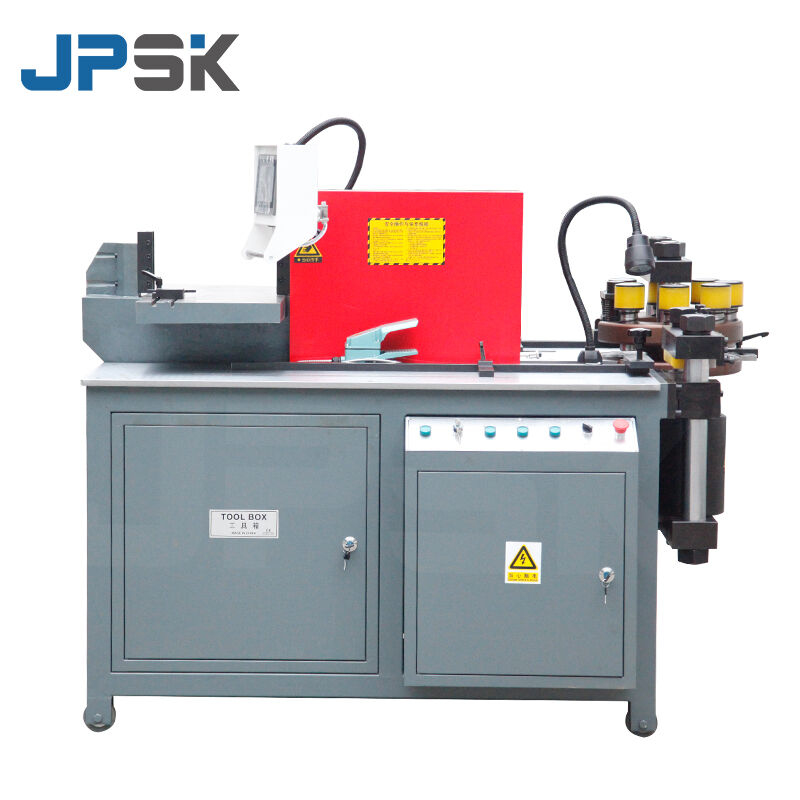

Turret Double Table Busbar Processing Machine

Product Description

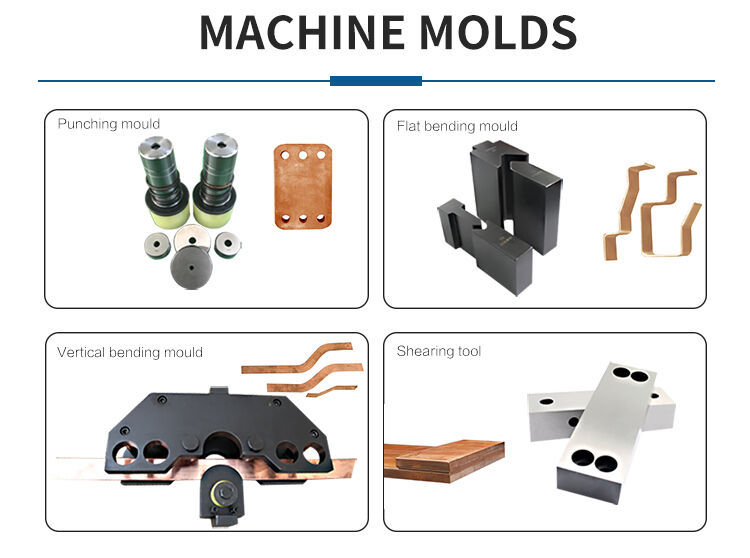

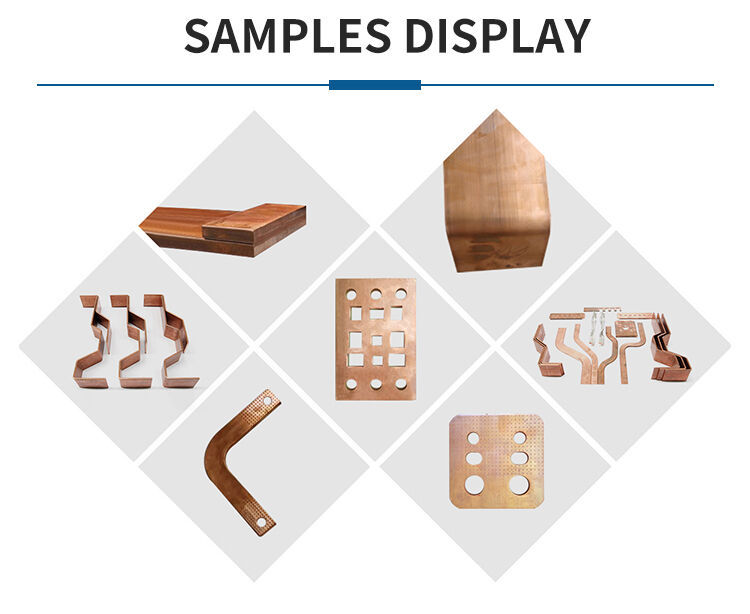

This series CNC busbar processing machine has three units: punching, shearing, and bending. It is easy to adjust each unit to shorten the processing time and improve production efficiency. It is used to process copper and aluminum busbars in different specifications. By relative operation unit, it can easily and quickly do all kinds of processing to copper and aluminum busbars, such as shearing, punching (circular hole and oblong hole), flat/horizontal bending, vertical bending, and knurling. Change different molds to do special processing to copper busbars, such as flat press, emboss, cable connector process, cut, flat crush, push, and bend.

Technical Parameters

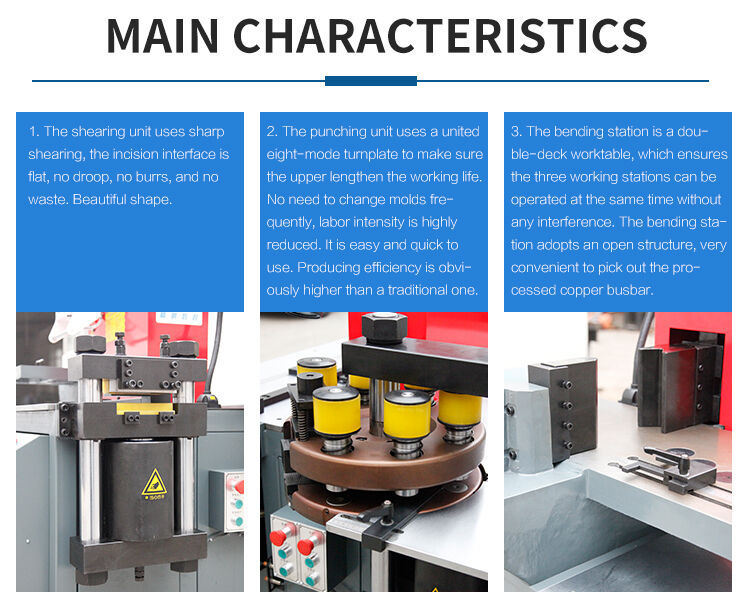

Main Characteristics

1. The shearing unit uses sharp shearing, the incision interface is flat, no droop, no burrs, and no waste. Beautiful shape.

2. The punching unit uses a united eight-mode turnplate to make sure the upper lengthen the working life. No need to change molds frequently, labor intensity is highly reduced. It is easy and quick to use. Producing efficiency is obviously higher than a traditional one.

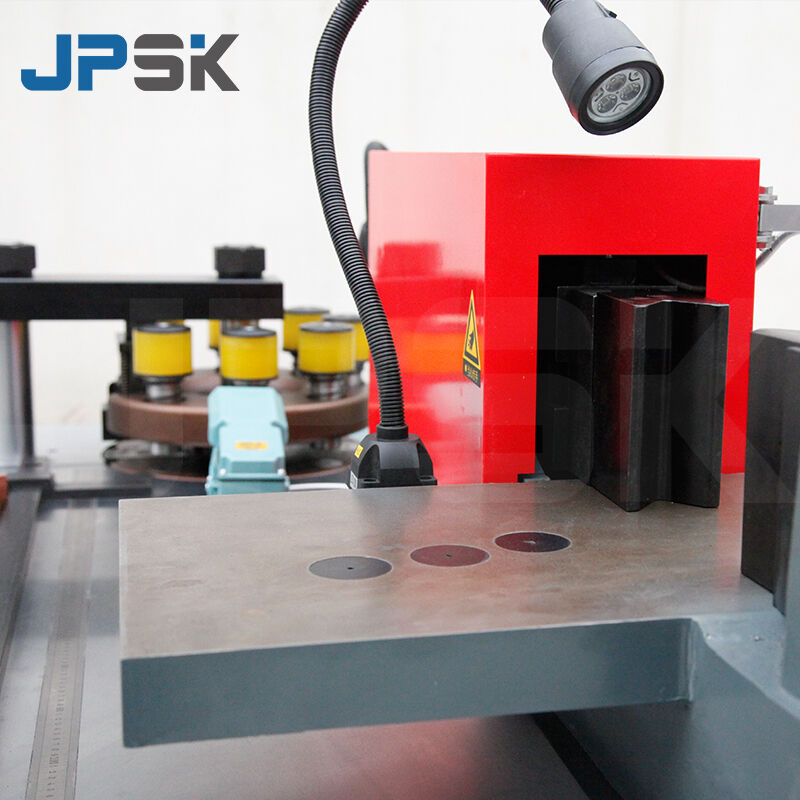

3. The bending station is a double-deck worktable, which ensures the three working stations can be operated at the same time without any interference. The bending station adopts an open structure, very convenient to pick out the processed copper busbar.

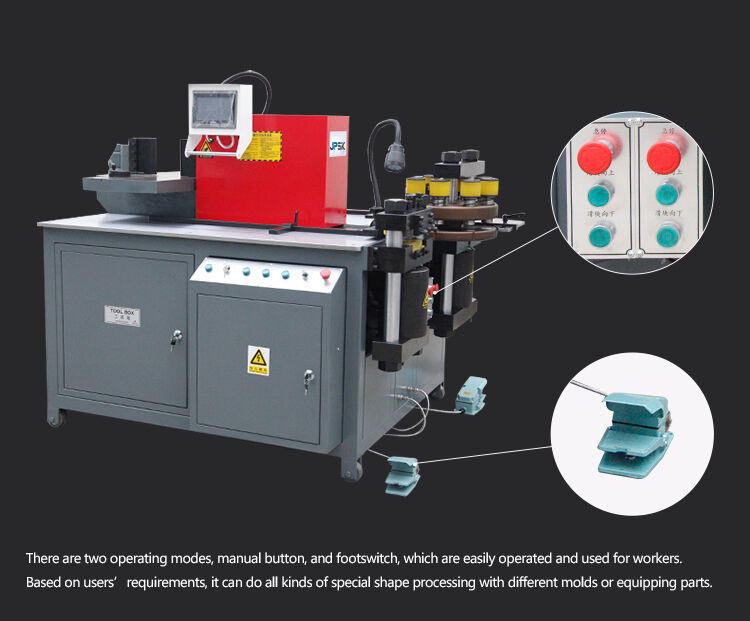

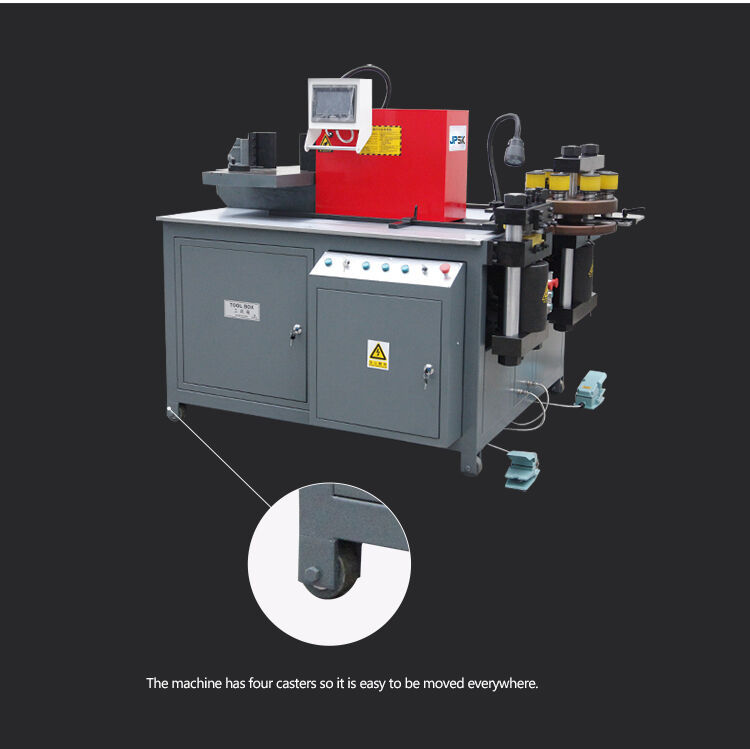

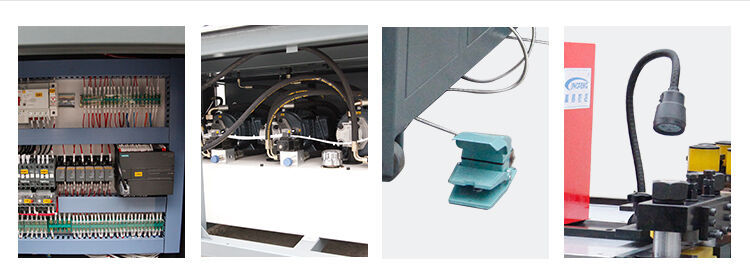

4. The machine has four casters so it is easy to be moved everywhere. There are two operating modes, manual button, and footswitch, which are easily operated and used for workers. Based on users’ requirements, it can do all kinds of special shape processing with different molds or equipping parts.
