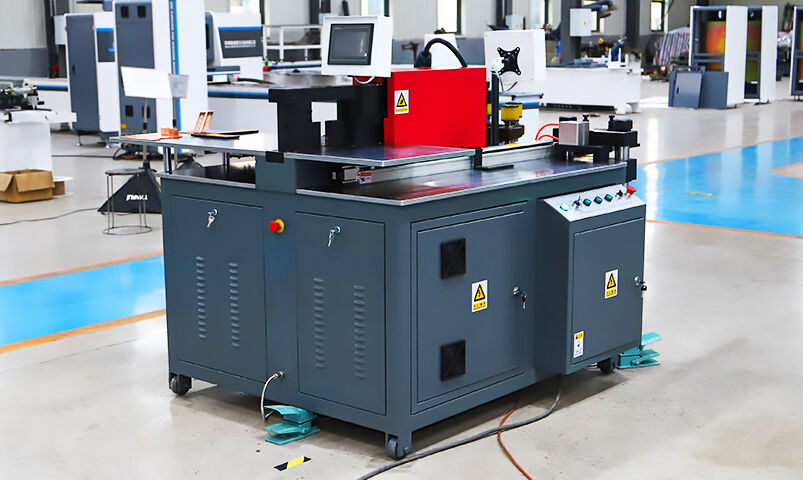

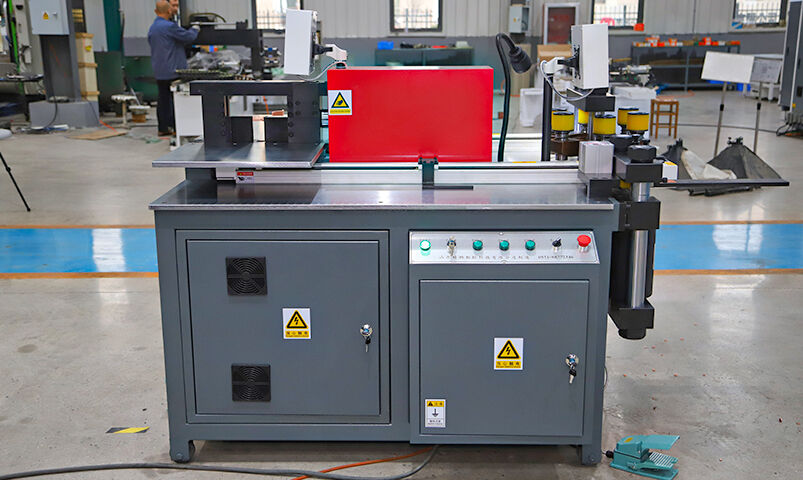

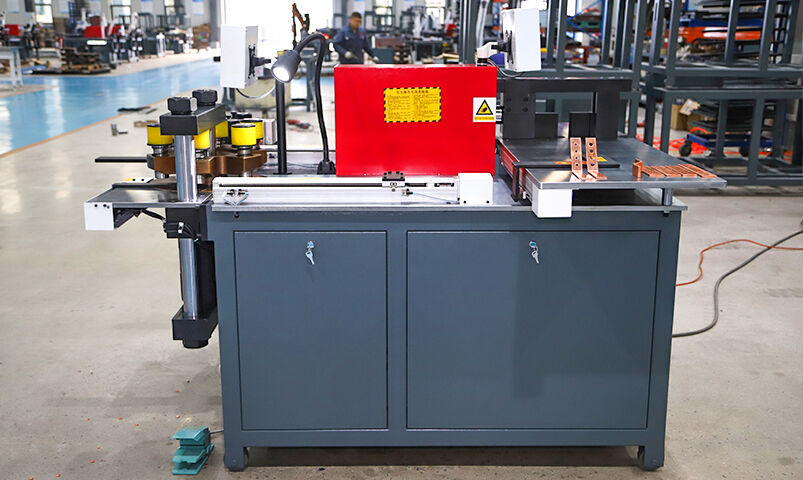

Product Introduction:

This machine is a patented product of Jinan Jingpeng CNC Machinery Co., Ltd.

Patent NO.is 202122937558.0 .The programming software copyright registration number is 2022SR0929069.

This machine is equipped with three processing units of Punching, Cutting and Bending. And it is designed with three independent hydraulic systems, so that the punching, shearing and bending unit can work simultaneously.

 The machine realizes the automatic positioning of the three units, through the cooperates with each other of servo motor, PLC and touch screen.

Main Characters:

(1) The cutting length is automatically controlled by servo motor, the incision interface is flat, no waste, burrs and droop.

(2) No need to mark a proofing board for punching. Servo motor automatically locates punching coordinates. It supports continuous punching and punching with different apertures, and supports coordinate input and common template selection, which is convenient and efficient.

(3) The bending system automatically calculates the unrolling length of the copper busbar. High-precision screw guides control the bending length. The system has a variety of built-in bending processing templates; supports multi-segment and multi-angle continuous bending processing.

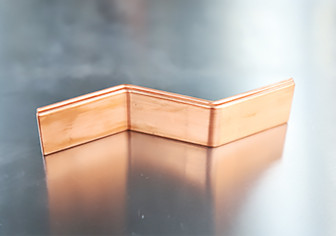

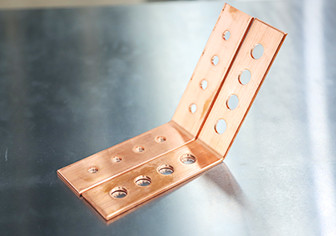

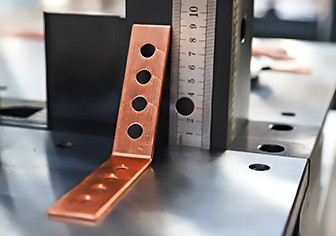

Demonstration of Processing Samples

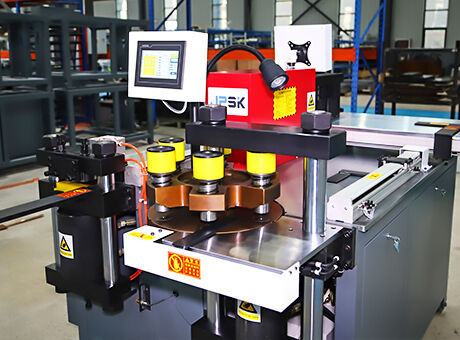

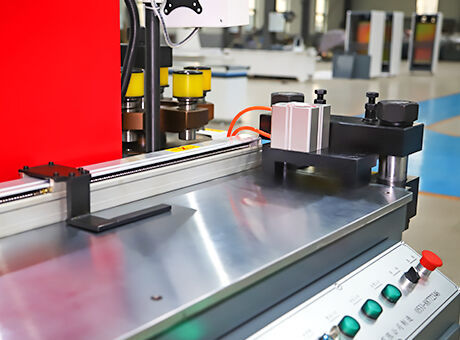

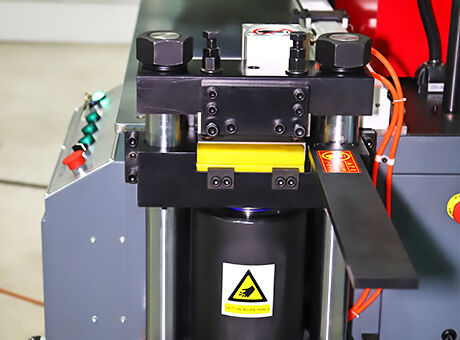

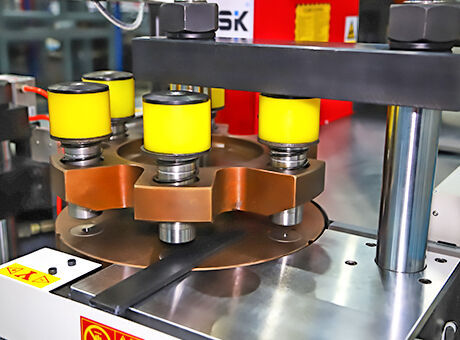

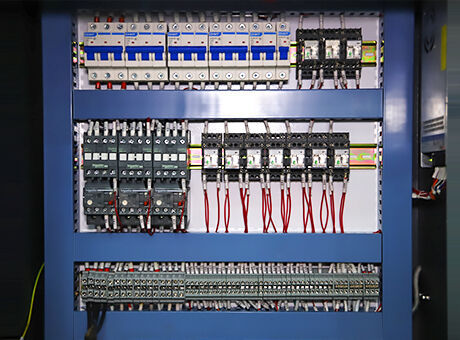

Details Display

Technical Parameters
